M ICRO -C ON -X ? F IELD I NSTALLABLE C ONNECTORS
Part Number to Order
XX X XX-XXG-3XX
Style 3
Connector Type:
16 - Cable End
17 - Panel Mount
18 - Cable to Cable
Contact Size:
2 - #20
Contact Style:
80 - Crimp (Supplied loose)
Grommet Code –
Cable O.D. Range:
Back Shell 11 - .09 - .14 (2.3-3.5)
15 - .15 - .17 (3.8-4.3)
18 - .18 - .20 (4.6-5.1)
Back Shell Style:
3 - Weathertight Grommet
Grip/Seal & (1) interfacial
“O” Ring
81 -
82 -
91 -
92 -
P/C Tail .187" (4.7) (Supplied assembled)
Solder Cup (Supplied assembled)
P/C Tail .280" (7.1) (Supplied assembled)*
P/C Tail .335" (8.5) (Supplied assembled)*
300 - Panel mount with hex nut
& gasket
3ES - 300 with Epoxy
Number of Contacts:
2 or 3
Type of Contact:
P - Pin
S - Socket
Contact Plating:
G - Gold over Nickel (Standard)
*Available in #20 size contact only.
Consult factory for optional threaded coupling.
Consult factory for your custom design cable assemblies and connectors. (See pages 3 & 26)

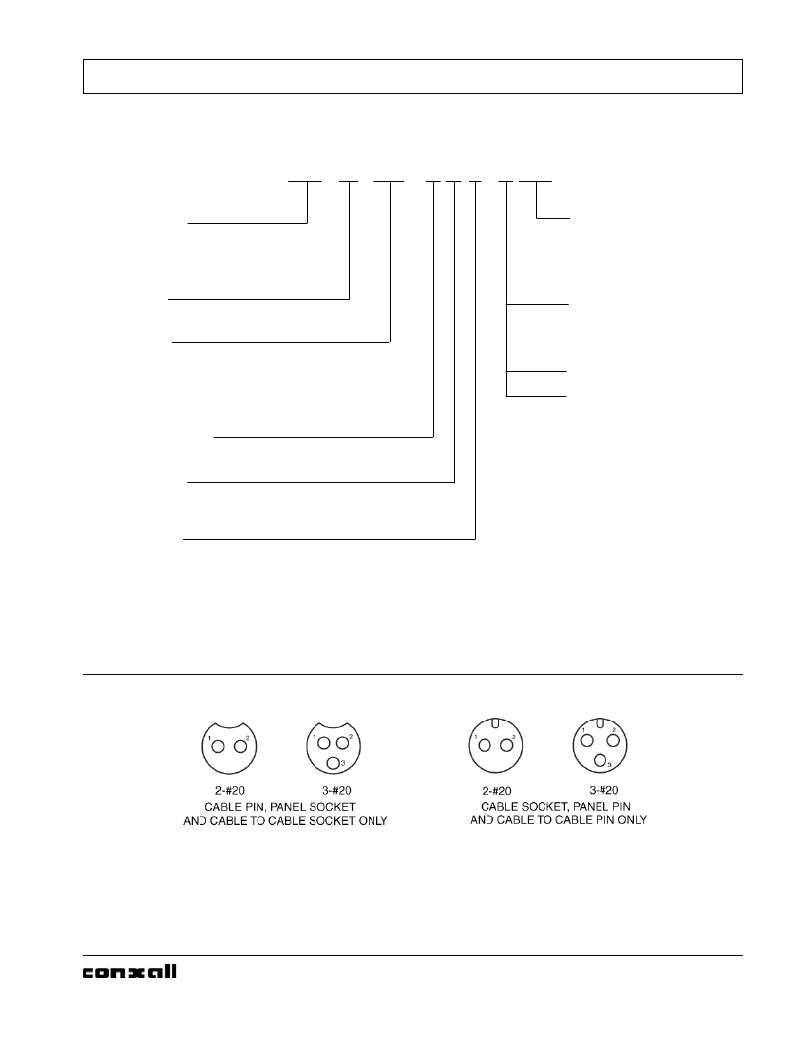

Contact Arrangements
Contact arrangements shown are wiring view of cable end pins/sockets.
Key/keyway shown for orientation only.
For higher density patterns, consult factory.
?
